| 項目 | 詳細內容 |
|---|---|
| 品牌／型號 | Hong Nor／Panther H9802 |
| 比例／顏色 | 1:10／銀河灰色 |
| 馬達 | Hobbywing 3652 無刷馬達（3300KV） |
| 電變 | Hobbywing WP-10BL60-RTR 60A 防水無刷電變（支援 2S–3S LiPo） |
| 遙控系統 | 2.4GHz 4通道遙控器（距離約120米，可限速） |
| 最高速度 | 約 90KM/H |
| 驅動系統 | 四輪驅動＋高性能前後差速器 |
| 懸掛系統 | 四輪獨立避震＋金屬油壓避震器 |
| 舵機 | 15KG 金屬齒輪高扭力 Servo |

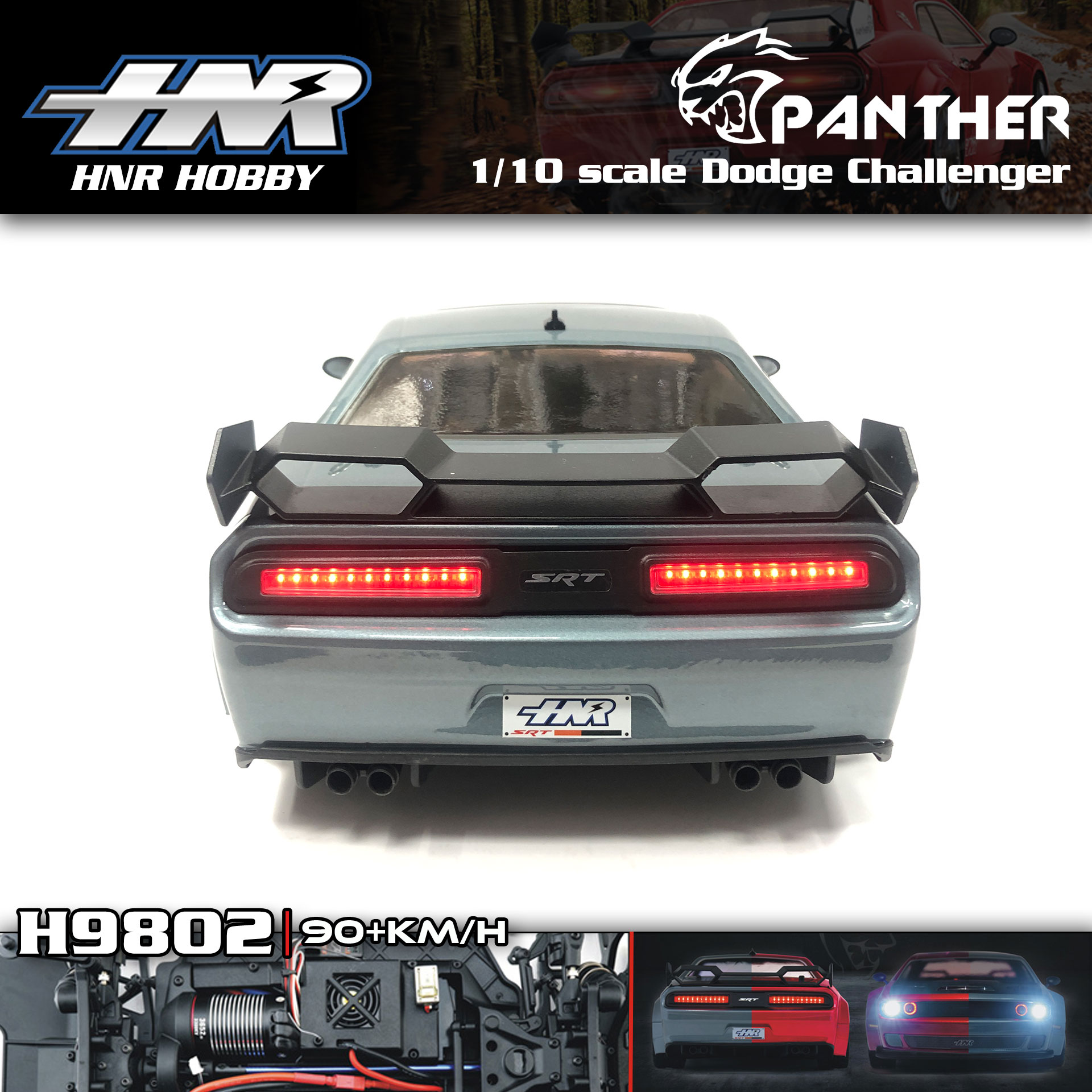

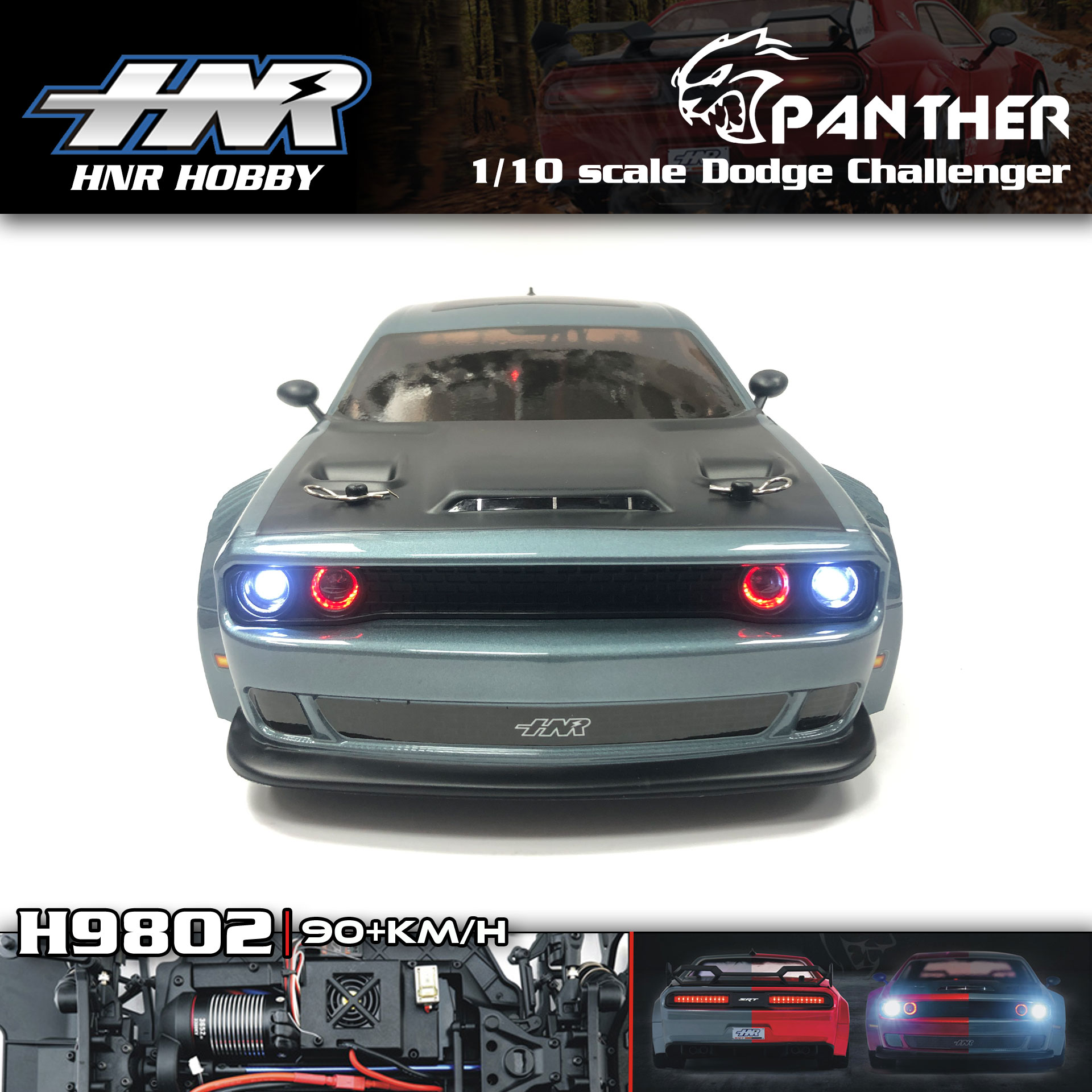

| 車燈系統 | 多功能 LED 燈組（轉向燈、剎車燈、爆閃燈等） |
| 車軩配置 | 附漂移胎＋跑車胎各一套 |
| 車身尺寸 | 約 438 × 200 × 130 mm／軸距 260 mm／重量約 1.6kg |

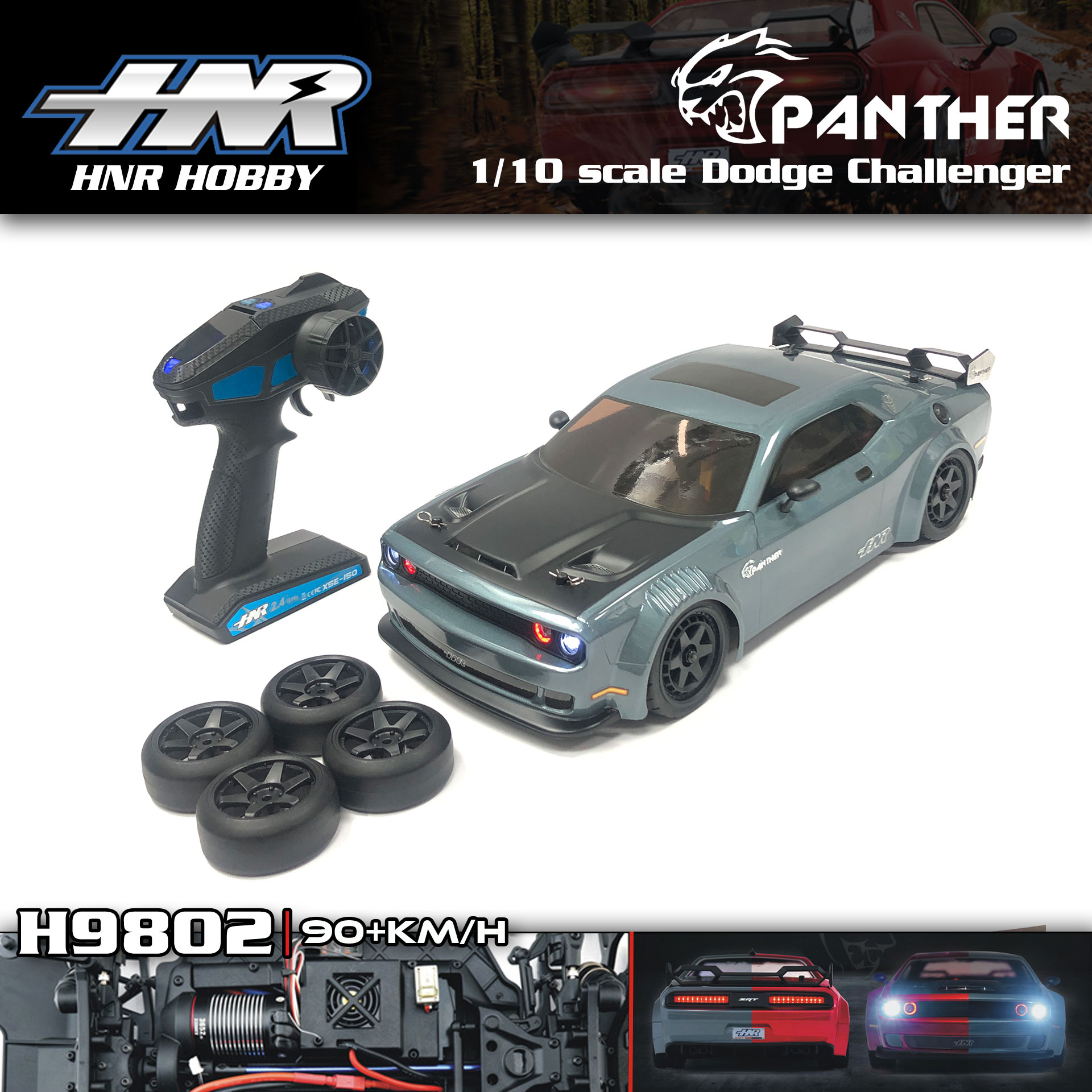

| 包裝內容 | 車身 ×1、遙控器 ×1、漂移胎 ×4、說明書 ×1、彩盒包裝 ×1 |

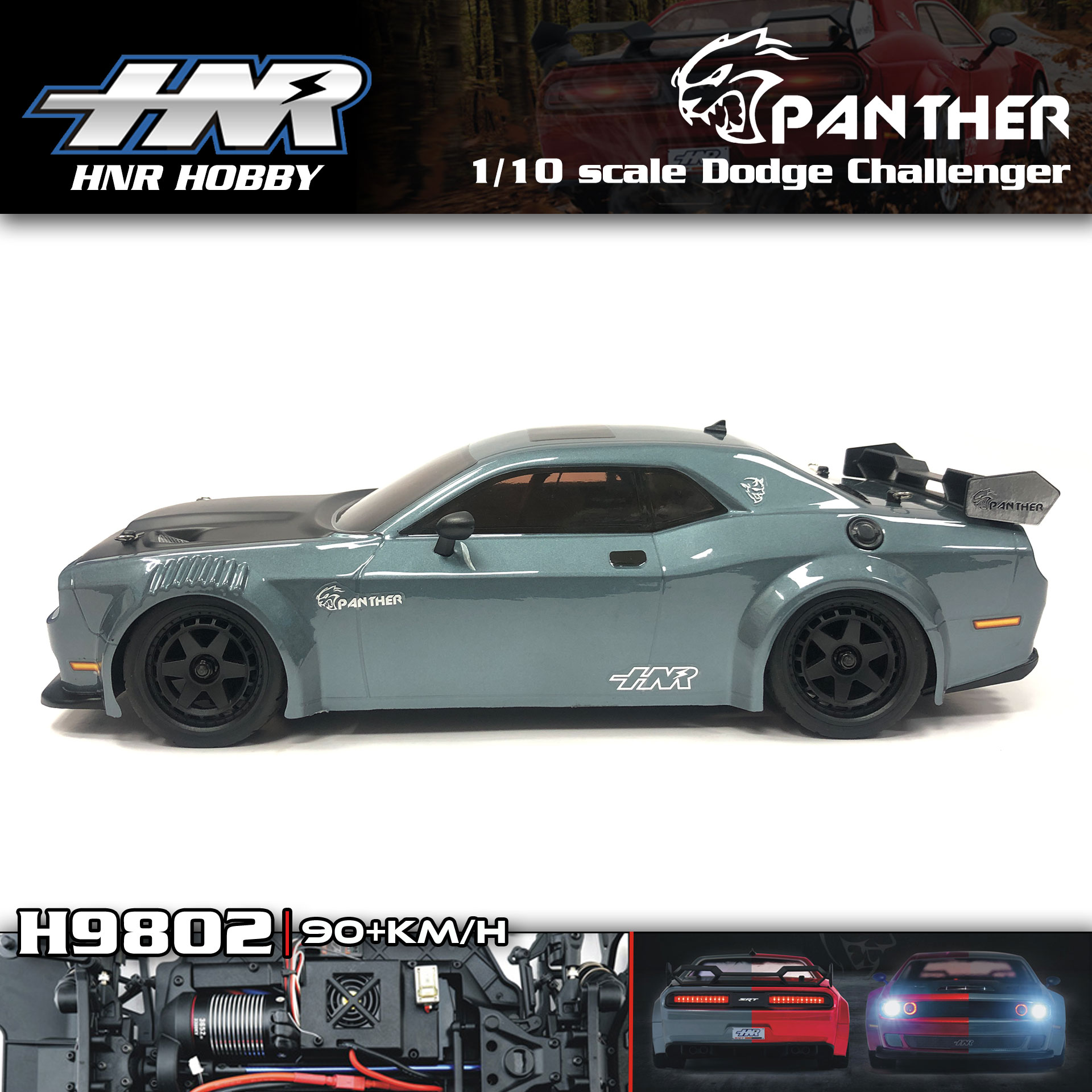

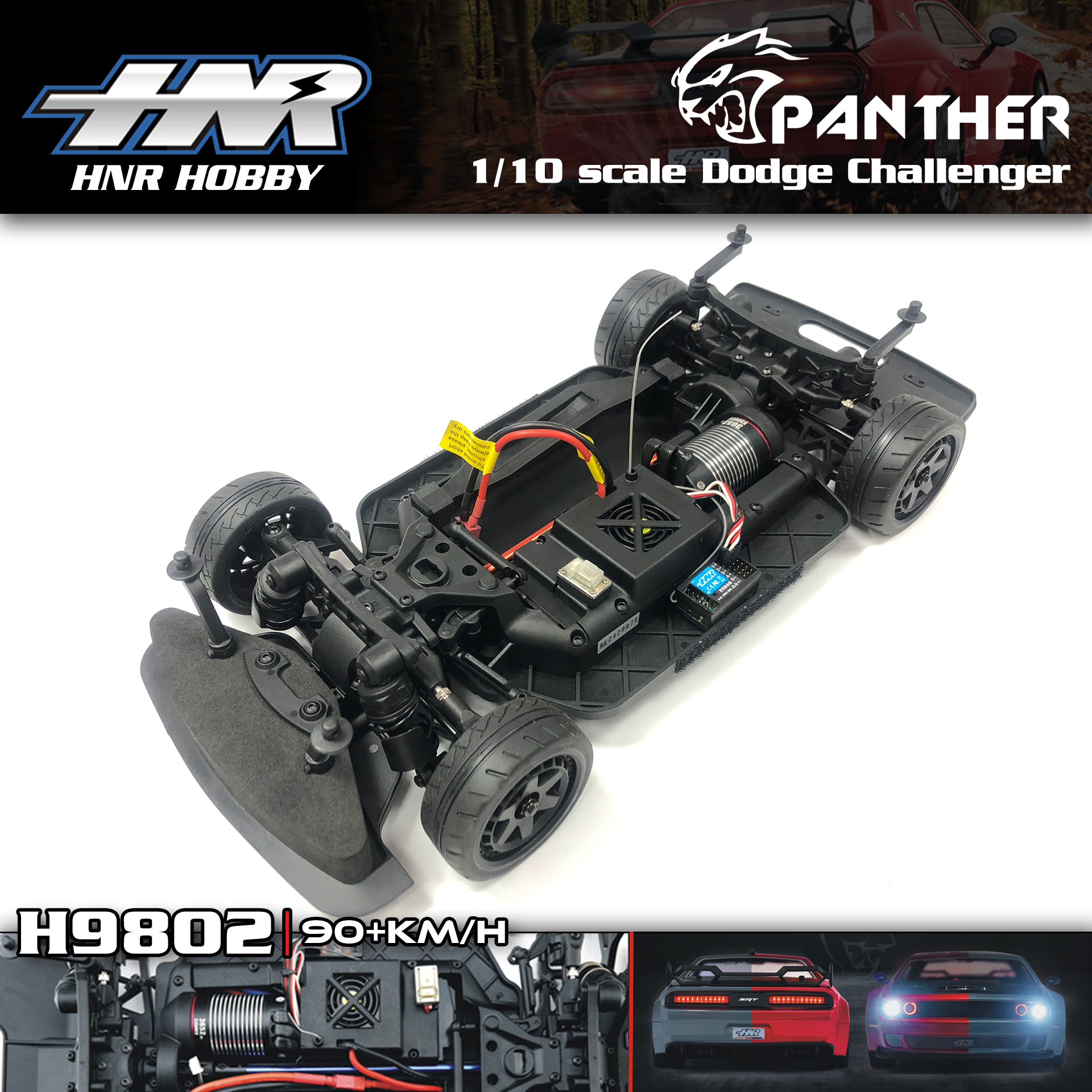

HNR "PANTHER" is a mid to high-end 4WD 1/10 scale racing car. In terms of appearance, Panther uses simulated bodyshell, and has multi-functional LED light group and drift wheel. Then it could enjoy the speed and play with light control effects, showing its RV feature. In terms of power setting, it adopts Hobbywing 60A brushless ESC + 3652 3300KV brushless motor, which can use 2S~3S lithium batteries, and equipped with DVC dynamic body stability control system with gyroscope light control receiver and 5-CH 2.4G remote control.Even speed beyond 100km/h, it could be easily controlled. Panther could be used for street running, oval track, drift modification, etc. Item No. H9802, 99% RTR version in factory.

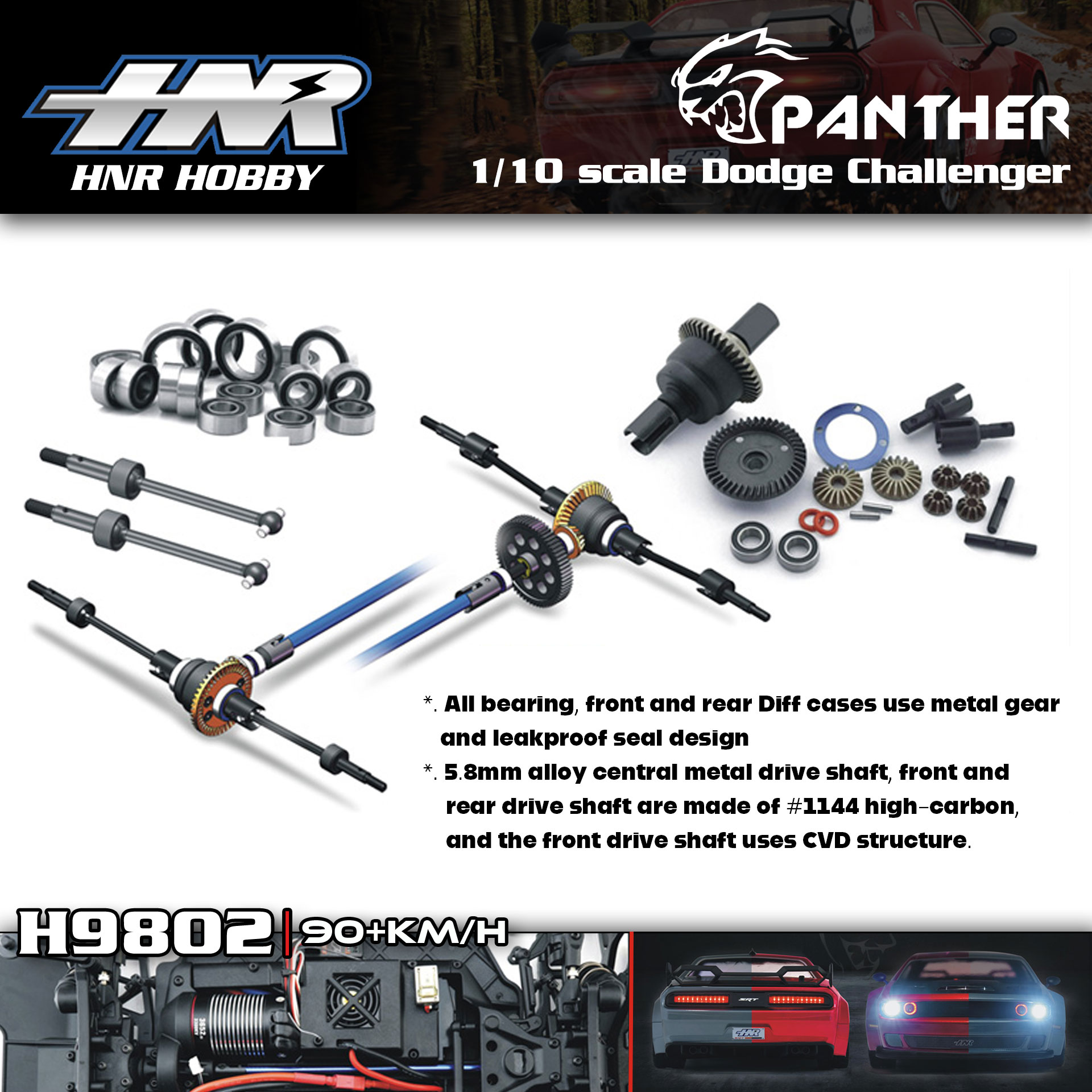

*. All bearing, front and rear Diff cases use metal gear and leakproof seal design
*. 5.8mm alloy central metal drive shaft, front and rear drive shaft are made of #1144 high-carbon, and the front drive shaft uses CVD structure.

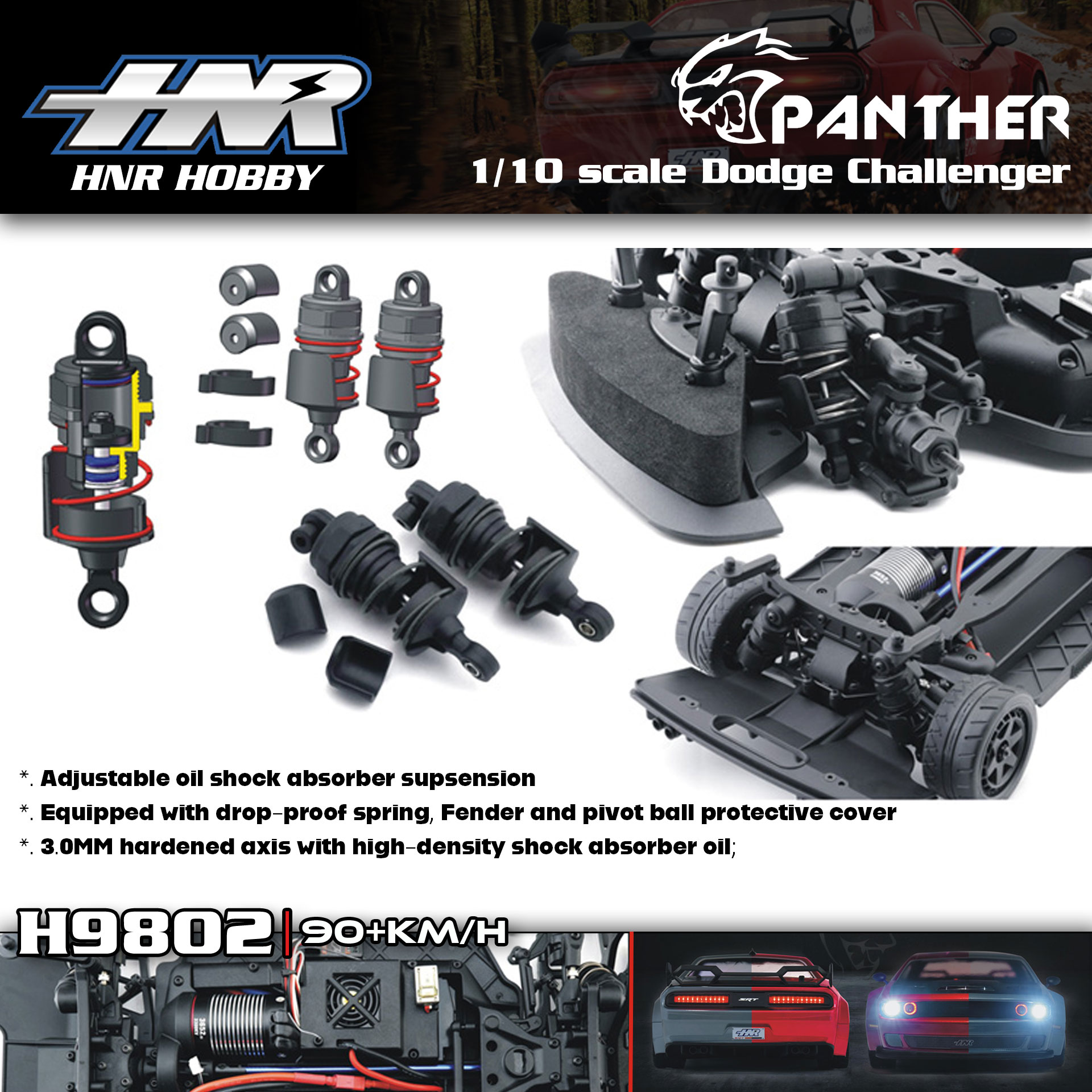

*. Adjustable oil shock absorber supsension
*. Equipped with drop-proof spring, Fender and pivot ball protective cover
*. 3.0MM hardened axis with high-density shock absorber oil;
*. The upper swing bar adjusted steel link;
*. Front and Rear have the anti-roll desgin（packed in giftbox, please assemble when needed）

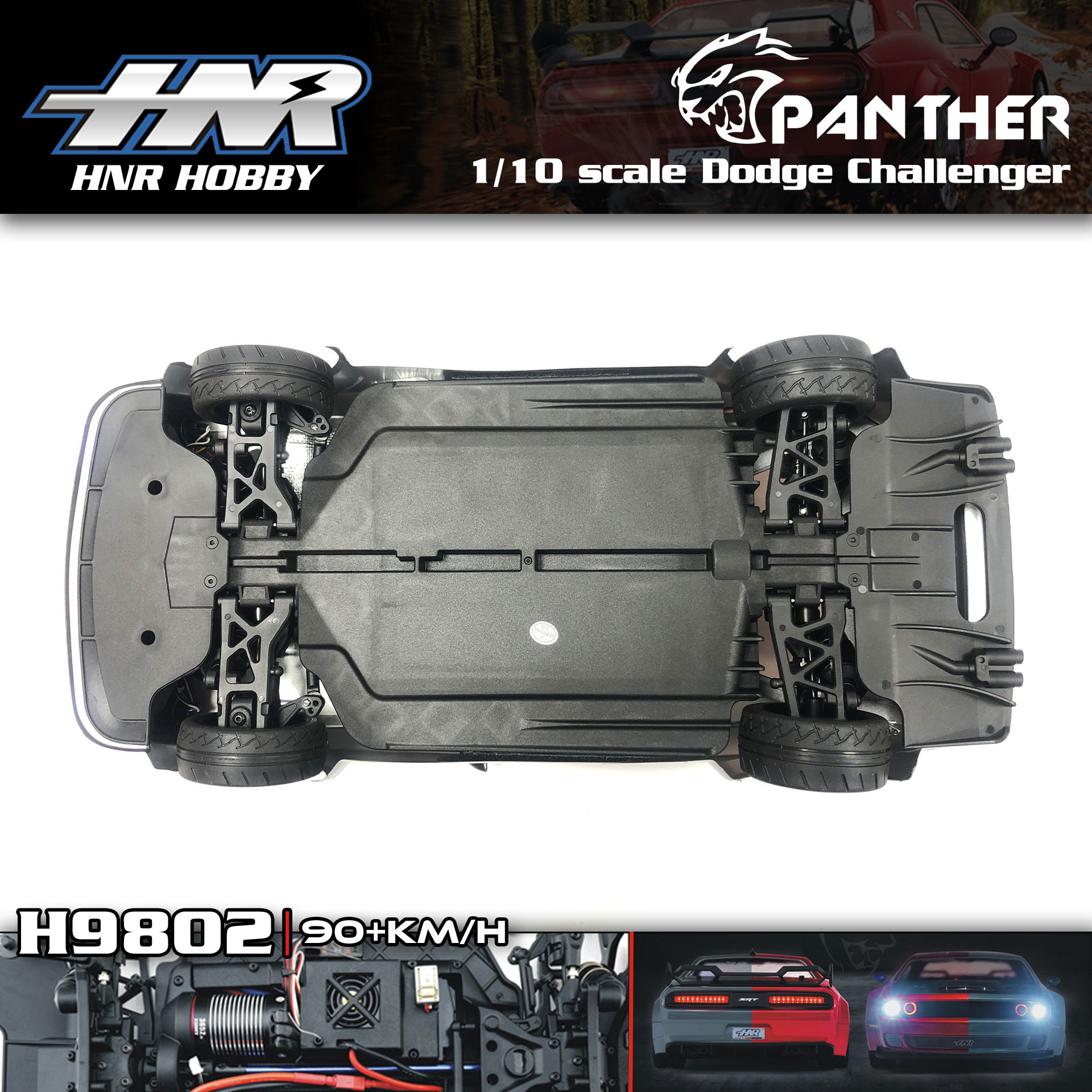

*. Widened and screwless chassis looks simple and beautiful, and has better anti-dust effect and stability.

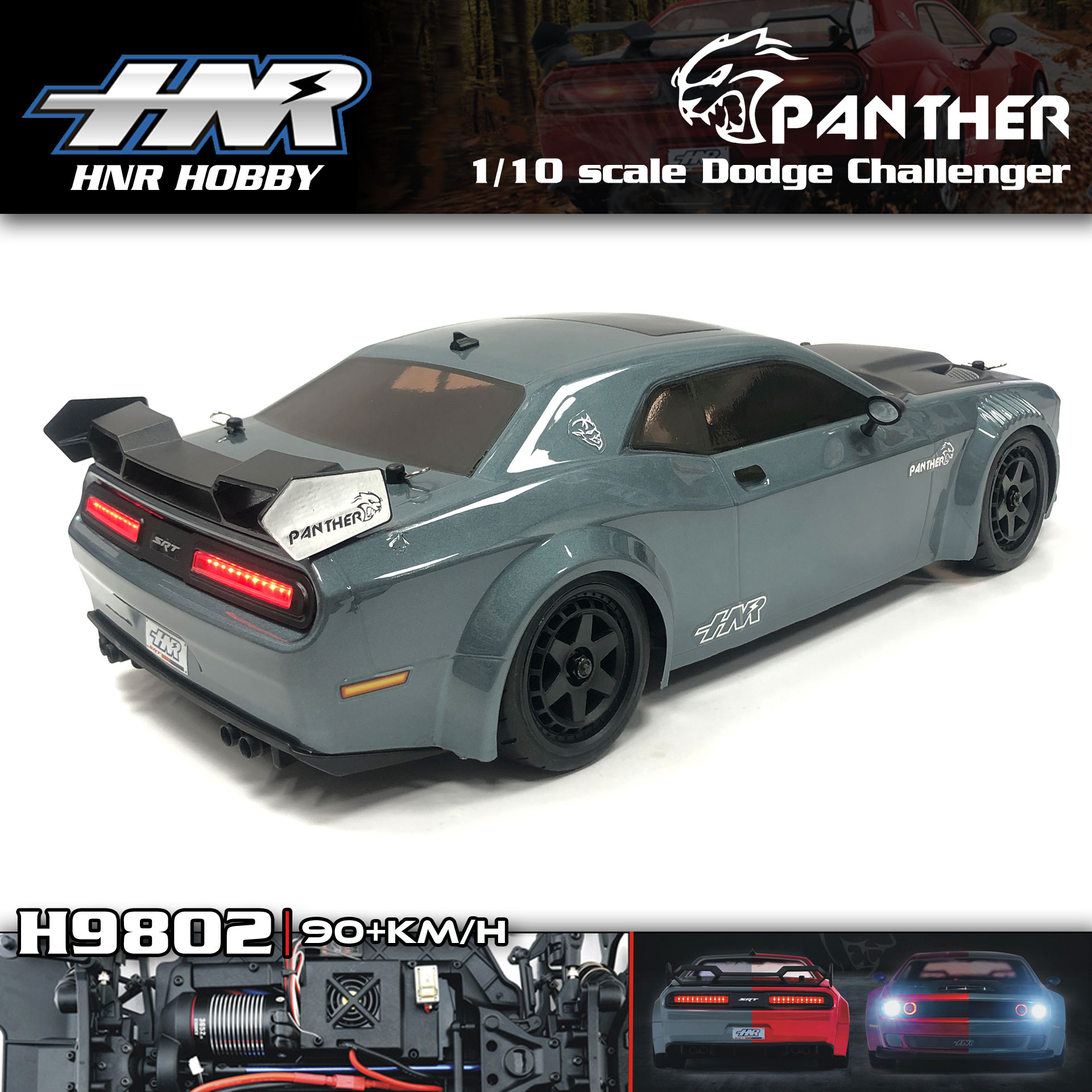

*. The rear bumper is in deflector shape, increasing the dynamic appearance,also effectively reducing the air resistance generated by the racing car at high speed, making the racing car more close to the road and improving the driving performance;
Hobbywing "WP-10BL60-RTR"Electronic Speed Control
*.Compatible with sensorless brushless motors and sensored brushless motors.
*.Fully waterproof design for all weather conditions with independent fan.
*.Super internal switch-mode BEC with switchable voltage of 6V/7.4V for easily driving big torque servos and high voltage servos.
The instantaneous current can reach 15A；
*.Multiple protections: motor lock-up protection, low-voltage cutoff protection, thermal protection, overload protection, and fail safe.
Hobbywing 3652/3300KV Brushless Motor
*. Better motor linearity and stable rotor magnetism;
*. 6061-T6 alloy shell, and the shell temperature can reach 100°C (212 F);
*. Motor mount eqquipped with heat sink , supporting 23T-29T motor pinion
*.15KG all-metal gear digital steering servo，
*.Fully waterproof design
